A new way to validate Angular Forms

Modified August 15, 2022

Tim Deschryver

timdeschryver.dev

format_quote

Update: After writing this blog post I realised that the proposed API was similar to Template Driven Forms, but worse. Since then I'm a huge believer in Template Driven Forms, as you can read in A practical guide to Angular Template-Driven Forms.

Over the past year, our team has created a lot of different forms for a form-heavy application. One of the difficulties we experienced was validating fields that are dependent on other fields of the form. For example, conditional validation or validation where multiple fields are needed to validate a control.

Now, when we look back at those forms, we notice that most of the forms are build differently. We're not the only ones that struggle with this. I asked the question of how to implement a conditional validation in Angular Forms on Twitter, and there were multiple answers on how to tackle this problem. All of them were different but there was a consensus, it isn't always straightforward, nor is it easy.

To streamline our forms and to make the validation easier I started a proof of concept to validate forms differently.

Goals link

The goal is to come up with a solution for more complex forms, but it should be also used for simple forms.

As a developer using this new validation API, I don't want to write a lot of code that introduces subtle bugs. Instead, I just want to declare validation rules.

These validation rules must be reusable (and testable). We get extra points if common rules are built-in, preferably similar to the Angular validators.

I also don't want the solution to be destructive because I don't want to rewrite existing forms. Therefore, the solution has to build a layer on top of the existing Angular Forms API.

The proposal link

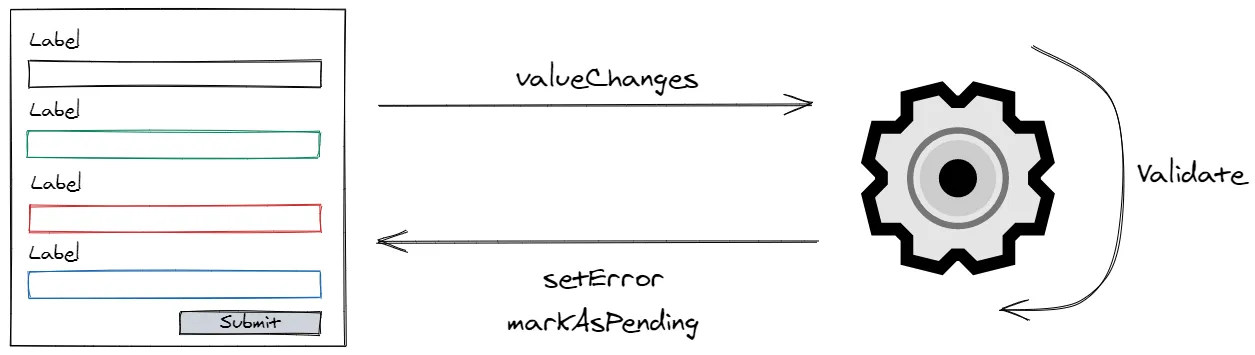

The Angular Forms API already provides the basic building blocks to make these goals possible. An AbstractControl has the method setError, which is all that's needed to make a form (control) valid or invalid. Based on the validity of these form controls, the form derives its validity status.

For asynchronous validators, we'll also need markAsPending to set the control's status to pending while a validator is validating its value.

The intention of this new validation layer is only to validate the form value and to make use of the existing Forms API to set and clear the errors of the form controls, and thus also for the form itself.

To build the validation layer, we use the createValidator<T>() wrapper and assign validation rules to the form properties. A validation rule consists of the details of why the validation has failed. The validation rule also contains a message for a user and can include these details in the message.

To activate the validator, it must be subscribed to, and the validator returns an Observable containing all of the messages.

To see this in action, please have a look at the following examples.

The differences link

Let's highlight the differences and the benefits compared to the default behavior by comparing the two.

Conditional Validation link

To disable and enable form validation based on a control's value, we use when. For example, in the validator below name becomes required when strict is true.

 content_paste
formValidator = createValidator<FormValue>(this.form, {
  name: {
    validator: required(),
    when: (_, form) => form.strict,
  },
});

Without the createValidator wrapper, we need to juggle with validators by adding or removing validators of the control. If you use the Taiga UI kit, you can use the tuiValidator directive.

 content_paste
this.form.get('strict')!.valueChanges.subscribe((strict) => {
  if (strict) {
    this.form.get('string')!.setValidators(Validators.required);
    this.form.get('string')!.updateValueAndValidity();
  } else {
    this.form.get('string')!.setValidators(null);
    this.form.get('string')!.updateValueAndValidity();
  }
});

Doing this can quickly become bloated and hazardous for large forms when there's cohesion between different controls. In our case, we overruled a previous validator with a different one. It was after a couple of debugging sessions that we were able to reproduce this hidden bug. With the when syntax, it becomes easier to see the coherence between (multiple) controls and (multiple) validators.

Access to the form value link

In each validator, we have access to the value of the whole form. Having access to the form value is useful when you need to compare properties of a form (e.g. with the equal rule), or when the validation is based on multiple form values. In the snippet below, passwordConfirmation needs to be equal to the value of password.

 content_paste
formValidator = createValidator<User>(this.form, {
  password: [required(), minLength(7)],
  passwordConfirmation: equal((user) => user.password),
});

To implement this scenario with the Forms API, we have two options.

One, we can group both controls and create a validator for the form group. This has the disadvantage that the validation message isn't bound to a specific control. For us, this was problematic because our generic controls expect the validation messages to be bound to the control, not to a group, to display a validation message to the user.

The second option is to re-create the validators when the value changes.

 content_paste
this.form.get('password')!.valueChanges.subscribe((password) => {
    this.form.get('passwordConfirmation')!.setValidators(CustomValidators.equal(password))
    this.form.get('passwordConfirmation')!.updateValueAndValidity()
  }
})

Just like Conditional Validation this becomes tricky for bigger forms.

Statically Typed link

When you pass a type to createValidator<T>, the rest of the validation is statically typed.

While building the validator, properties of the form model are auto-completed and the value of a form control and the form will be typed in all of the validator rules. The built-in validators are also typed so we can't make the mistake of using the wrong validator. For example, you won't be able to use a number validation (e.g. greaterThan) for a property that holds a string value.

Main difference link

To make the above use cases possible, the whole form is validated on every change. This impact is negligible for synchronous validators because these are just methods that are invoked, thus should be fast, with a low impact on the performance. This is a different story for asynchronous validators, where this behavior might have an impact.

Impact link

As a developer, the createValidator wrapper intends to make it easier to write and read the validation logic of your Angular forms. Its minimal API (with the common supplied validation rules) should also allow a quick transition towards the createValidator wrapper. Refactoring existing forms will have a minimal impact because the status and the value of the form remains the same as before.

Final thoughts link

While this is just a simple proof of concept, I can see the benefits of adding an extra layer on top of the Angular Forms API and use the basis as building blocks. Because of this, and because of the common validation rules that behave the same as the built-in Angular validator I expect it to be a small and quick shift if we decide to pull the trigger.

The form validation is more expressive, and this should help with the development while also improving the maintenance cost.

As always, feel free to let me know your thoughts.
