Fire your Playwright tests on demand from the .NET Aspire dashboard

profile
Tim Deschryver
timdeschryver.dev

I want to show you a little trick on how you can integrate a (TypeScript) Playwright test project within Aspire's dashboard, to be able run them on from the dashboard. This makes it very convenient to quickly run your tests without having to use an IDE or the command line.

.NET Aspire configuration link

The default behavior is that all projects are automatically started when the Aspire application starts. However, using WithExplicitStart, it's possible to start an application explicitly when you need it. After the execution, the application shuts down, and you can restart it later. This is useful for certain tasks, such as running database migrations/seeds, or in this case, running Playwright tests.

To add Playwright tests to your Aspire dashboard, first add the Playwright project as a Node.js application to your Aspire project by using the AddNpmApp method. This is identical to how you would add any other Node.js application, but instead of serving the application, we want to run the Playwright tests. AddNpmApp accepts the name of the application, the path to the project, and the command to run the tests. For my case, I used the test command, which is defined in the package.json file of the Playwright project. Aspire will run the command using the npm CLI.

Because we don't want the Playwright tests to run automatically when the Aspire application starts, we use the WithExplicitStart method on the resource builder.

format_quote

Adds an ExplicitStartupAnnotation annotation to the resource so it doesn't automatically start with the app host startup.

The Playwright tests are written on my Angular frontend application, and require the URL of the application to run the tests against. Since the Angular application is also included in my Aspire project, I can reference it using the WithReference method. In my case, I referenced the YARP (Yet Another Reverse Proxy) project (gateway), which serves the Angular application. If you're not using a Proxy, it can of course also be a reference to the Angular application as another Node.js application. Behind the scenes, Aspire creates an environment variable containing the URL of the referenced application, which can be used in the Playwright configuration to set the baseURL for the tests.

I also created a new environment variable ASPIRE and set it to true. I needed this to provide the correct context in which the tests are run so that I could adjust the behavior accordingly. But, more on that in a moment.

Finally, I excluded the Playwright resource from the manifest using the ExcludeFromManifest method. This will prevent the Playwright project from being published when building/deploying the Aspire application. We want this to only be available in the development environment, so it doesn't make sense to include it in the production build.

In code, this looks like the following:

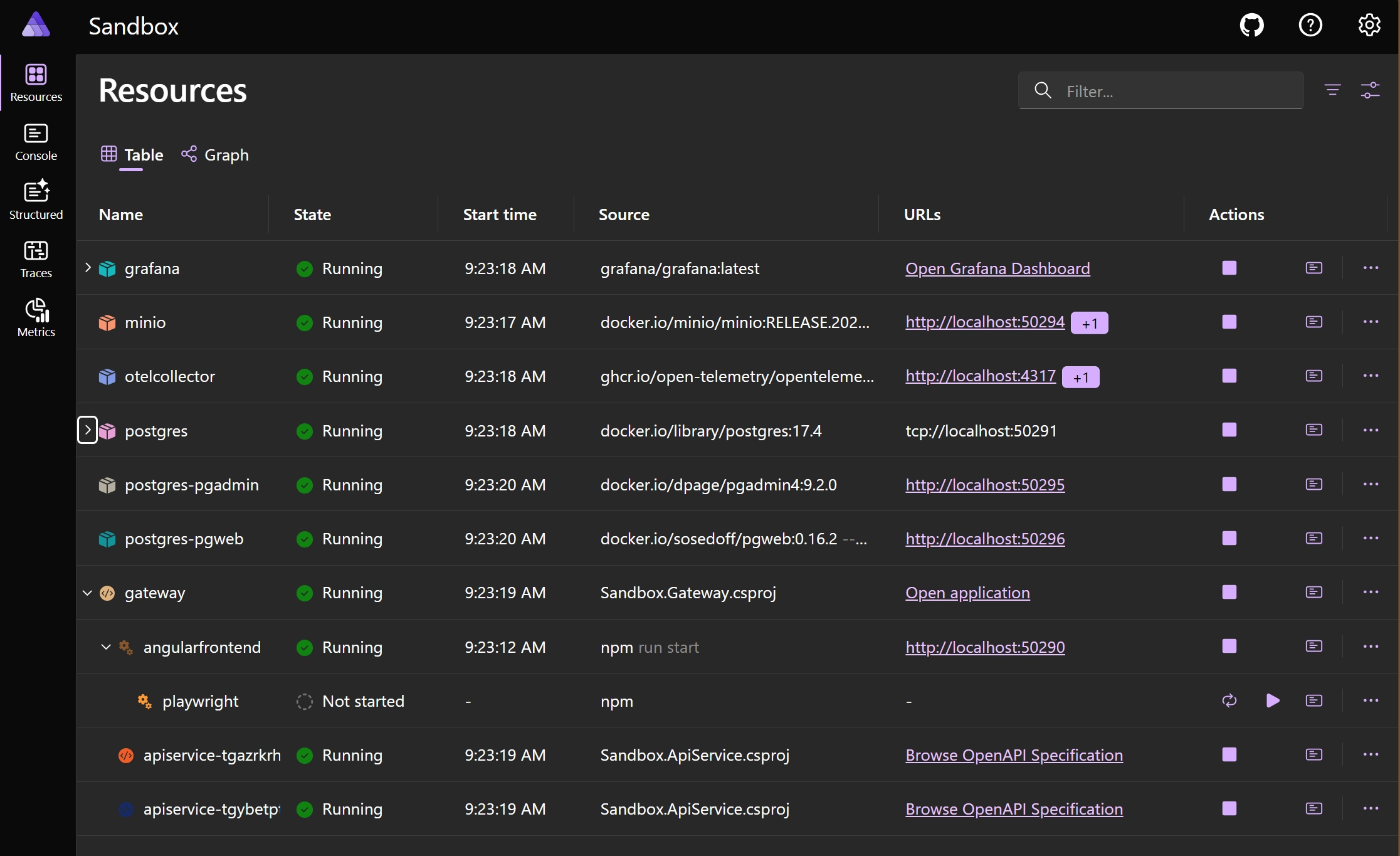

When you visit the dashboard, you see that the Playwright resource is listed there, and that it's not started yet. Because I created a parent relationship, the Playwright resource will be displayed under the Angular application in the dashboard. This is a nice visual grouping of the resources.

The .NET Aspire dashboard showing the Playwright resource

To run the Playwright tests, simply click the "Play" button next to the Playwright resource in the dashboard. You can follow the progress of the tests, and you can open the logs by selecting the "Logs" button.

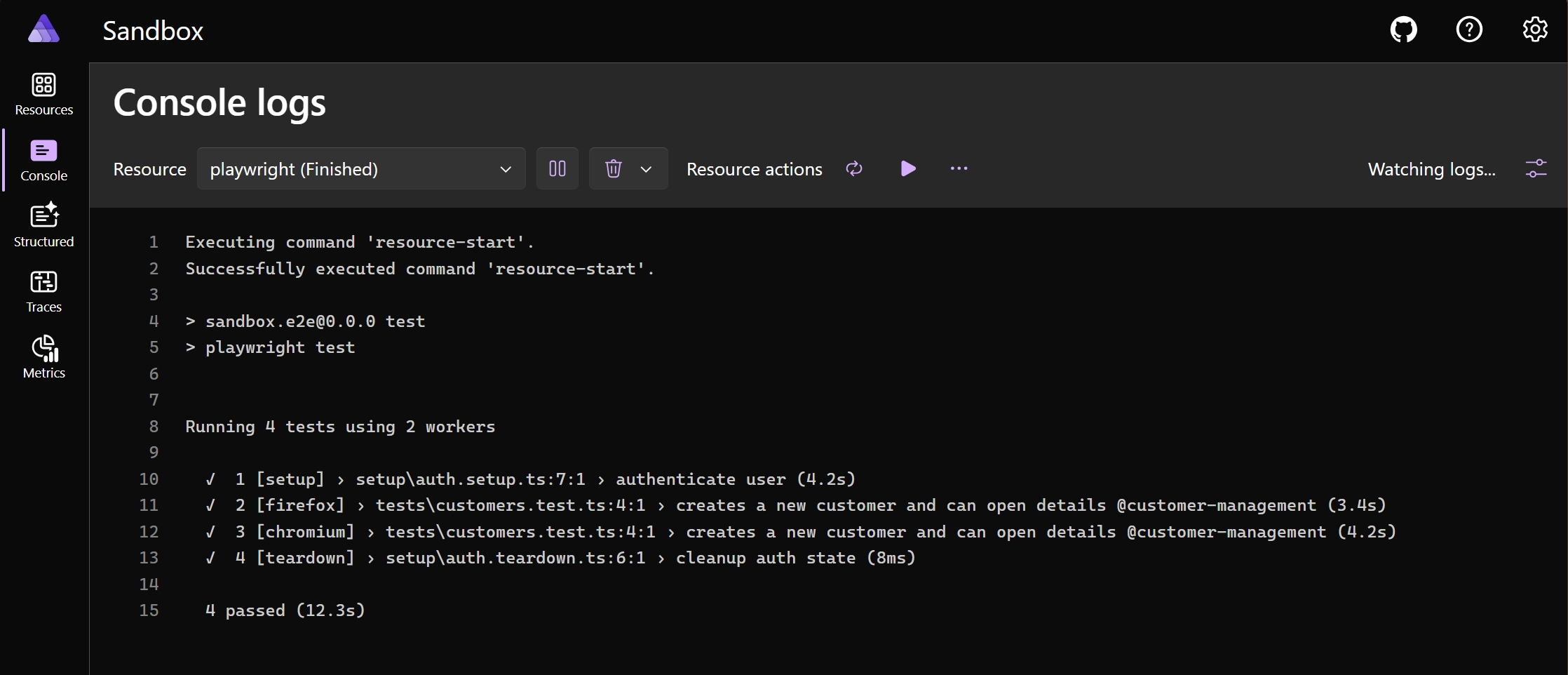

The .NET Aspire with the Playwright logs

When the tests are finished, the result is visualized in the dashboard with a finished success or error icon. At this point, the logs are still available, so you can inspect the output of the tests.

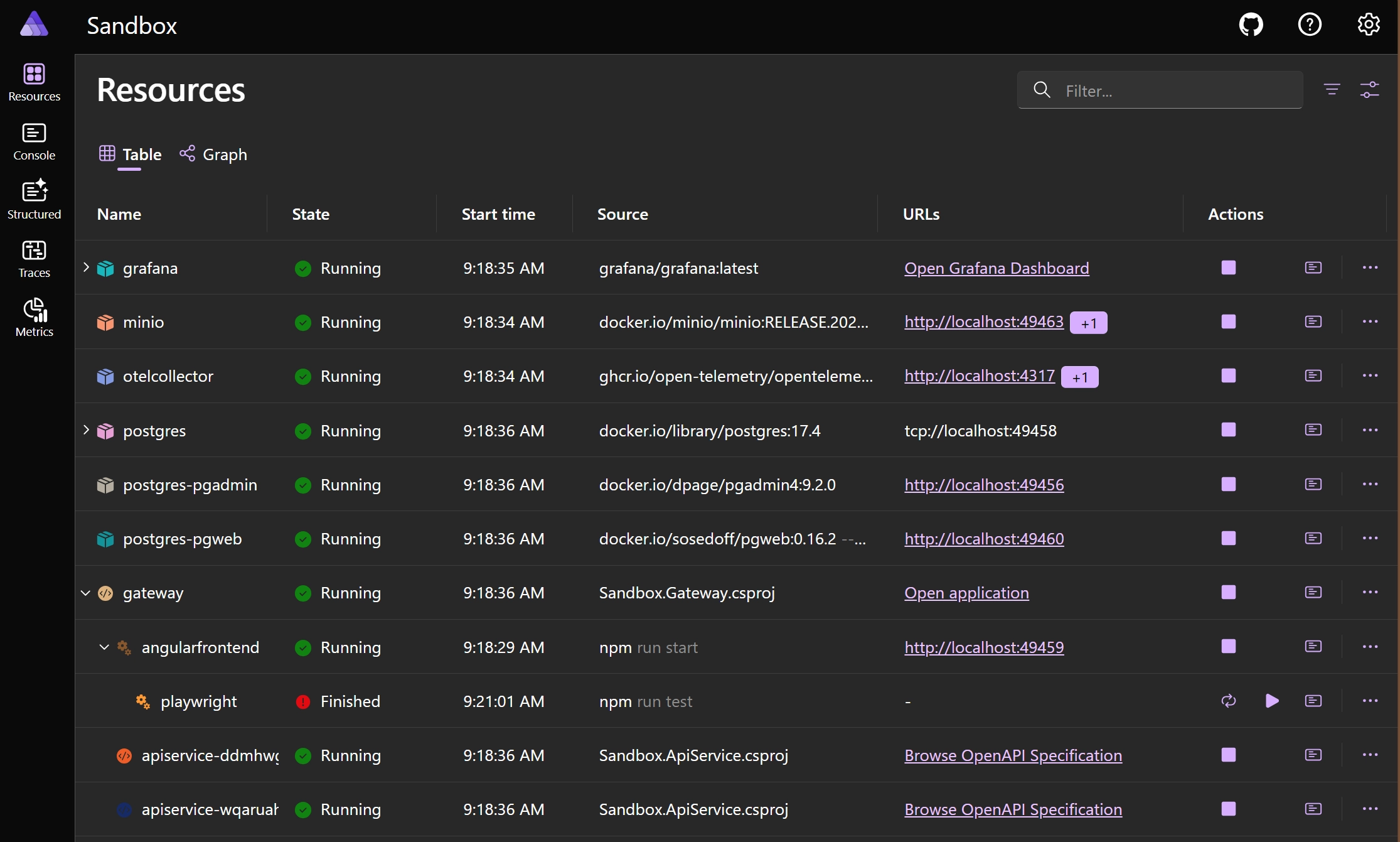

The .NET Aspire with the Playwright error

Playwright configuration link

The .NET configuration defines two important things for the Playwright tests:

  1. It sets the ASPIRE environment variable to true, which is important for the Playwright tests to know that they are running in the Aspire environment so they can adjust their behavior accordingly.
  2. It includes a reference to the Angular application, which is necessary to run the Playwright tests against the correct application URL.

Both of these settings are used while defining the Playwright configuration to configure the test setup.

The ASPIRE variable determines the reporter used for the Playwright tests. If the ASPIRE variable is set, it uses the list reporter, which is more suitable for the Aspire dashboard. The reporter logs the test results in a more compact format, and it exits the process after the tests are finished (otherwise, the process keeps running with the html reporter).

The application URL, which is accessed using the services__gateway__http__0 variable, ensures that the Playwright tests are run against the correct application URL. If the environment variable is not set, it falls back to the APPLICATION_URL variable, which is set within the CI environment.

The impacted Playwright configuration file looks like this:

Tip: Adding a custom command to repeat Playwright tests link

In the example above, you might have noticed the WithPlaywrightRepeatCommand extension method. This method adds a custom command to the resource, which allows you to repeat the Playwright tests. I used this to run the tests multiple times in a row, which is useful to ensure that the tests are stable, and because I needed to create some load on the application.

Without going into too much detail, this method spawns a new process that runs the Playwright tests with the pnpm run test --repeat-each=<N> command. Before running the command, it prompts the user to enter the number of times to repeat the tests. The output is forwarded to the Aspire dashboard logs so you can always follow the progress of the tests.

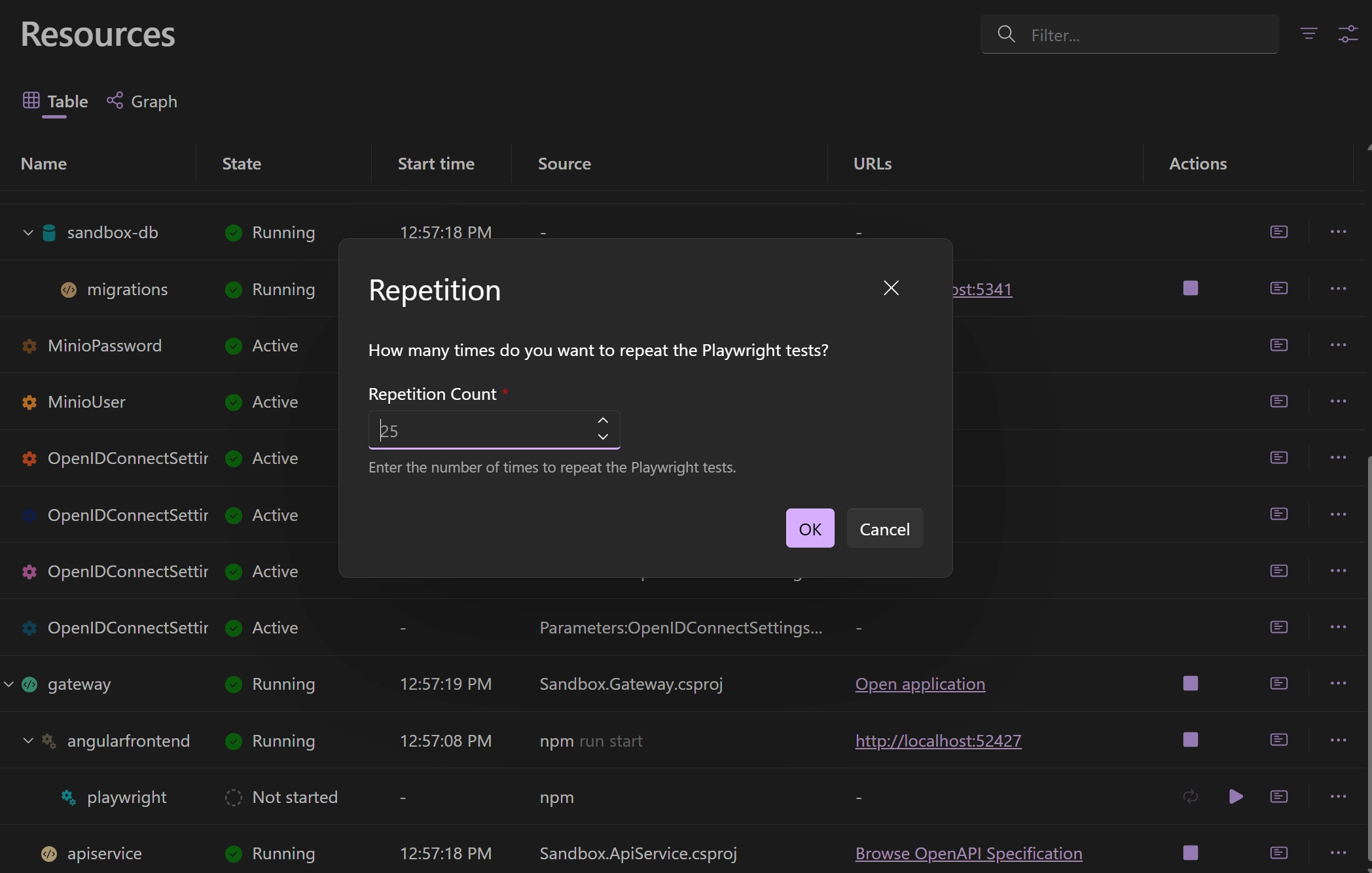

A prompt asking the user to enter the number of times to repeat the Playwright tests

Recap link

In this post, I showed you how to integrate Playwright tests into the .NET Aspire dashboard. Because we don't want the Playwright tests to run automatically when the Aspire application starts, we use the WithExplicitStart method to prevent the tests from running automatically.

I find this a useful feature to have in the dashboard, as it allows me to quickly run the tests without having to switch to your IDE or the command line. Instead, I can just click the "Play" button in the dashboard, and the tests will run in the background. This is a quick way to make sure that I didn't break the application with my latest changes.

You can find the complete code of the example on GitHub.
