Exploring the new output caching middleware

Modified April 14, 2023

Tim Deschryver

timdeschryver.dev

Caching in ASP.NET hasn't been great yet, but this changes with the recent addition of the new output caching middleware that has landed in .NET 7 Preview 6.

In this post, we're exploring the capabilities of the new output caching middleware and how to use it. As an example, let's create a new API and add caching to the weather forecast endpoint.

Create a new API link

Use the following command to create a new web API project. To follow along with me, make sure you have at least version 7.0.0-preview.6 installed.

 content_paste
dotnet new webapi -minimal -o OutputCachingExample

Enable Output Caching link

To use the output caching middleware on top of your endpoint, you first need to register the OutputCache into your application. Do this by using the IServiceCollection.AddOutputCache and the IApplicationBuilder.UseOutputCache extension methods while setting up the API in the Program.cs file.

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache();

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

Add a caching layer to an endpoint link

With the output caching middleware enabled we can start to add a caching layer on top of the endpoints of the API. The most basic way to do this is by using the CacheOutput extension to an IEndpointRouteBuilder (a route).

In the following example, the /weatherforecast route is cached because we "marked" the route to be cached with CacheOutput.

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache();

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

var summaries = new[]
{
    "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
};

app.MapGet("/weatherforecast", async () =>
{
    await Task.Delay(1000);
    var forecast = Enumerable.Range(1, 5).Select(index =>
        new WeatherForecast
        (
            DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
            Random.Shared.Next(-20, 55),
            summaries[Random.Shared.Next(summaries.Length)]
        ))
        .ToArray();
    return forecast;
})
.CacheOutput();

app.Run();

internal record WeatherForecast(DateOnly Date, int TemperatureC, string? Summary)
{
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
}

The result is that the handler of the endpoint is invoked the first time it receives a request. Then, when it receives new requests, the caching layer returns the cached response without executing the endpoint's logic.

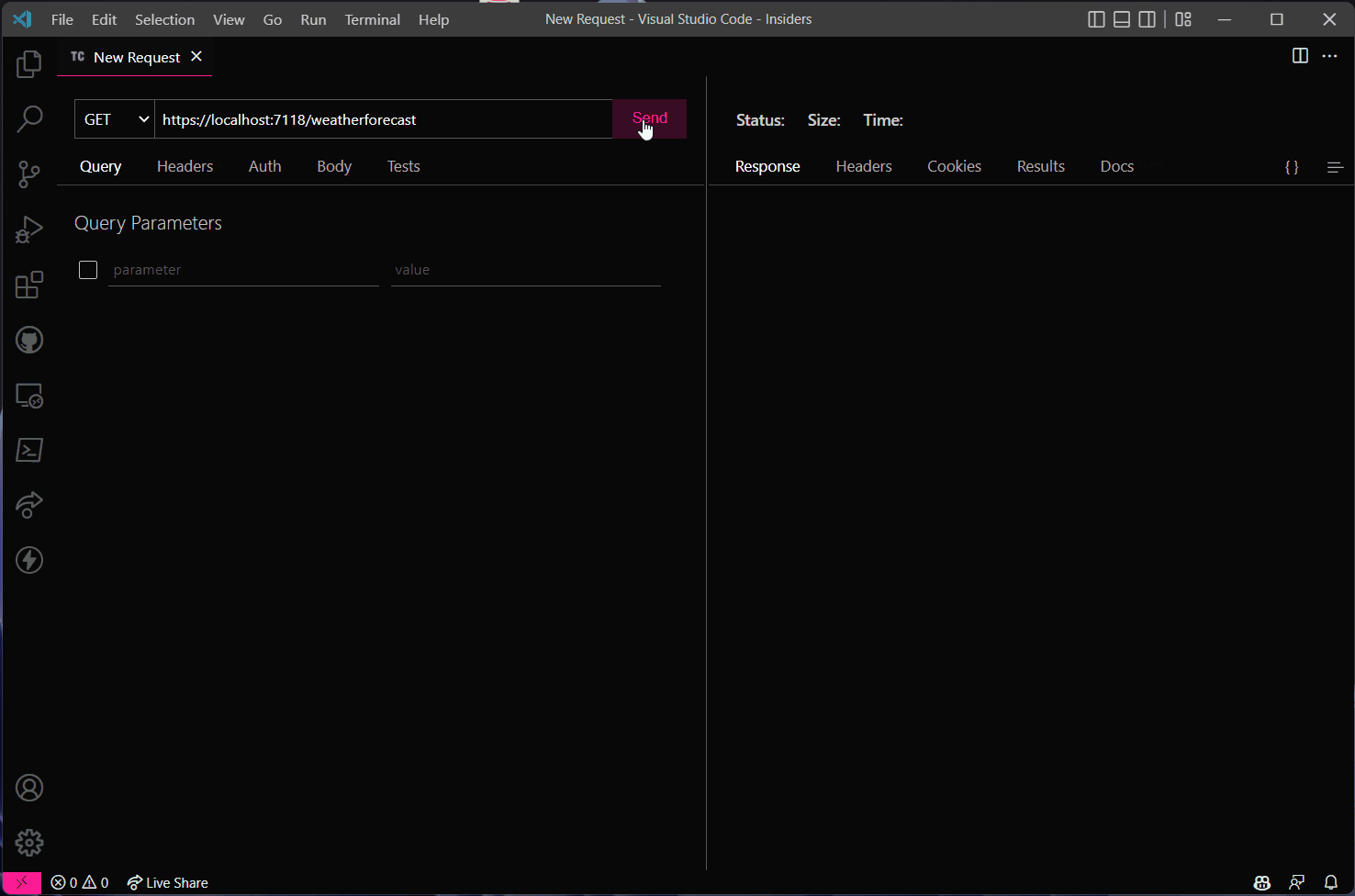

This is made visible in the next GIF, where a delay is added to the handler to make it clearer when the cache is empty, or when the cache is hit.

Cache by Query Parameter link

Because a weather forecast is specific to a region, using a single cache doesn't make sense. Let's see what happens when we add a query parameter "city" to request the weather forecast for a specific city.

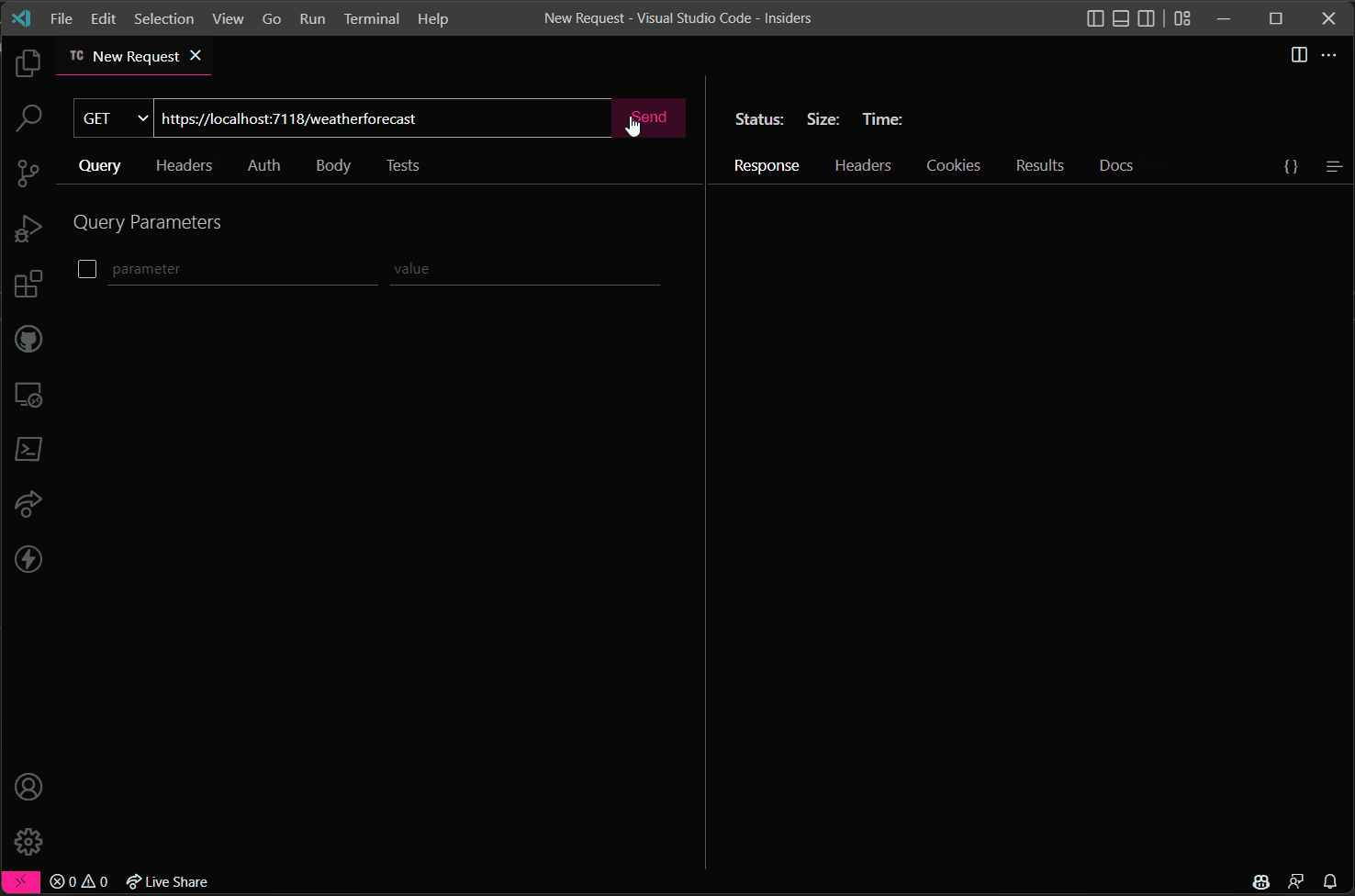

In the example below, the city query parameter (with Brussels as value) is added to the URL which means that the handler of the endpoint is executed. When the city value is changed (from Brussels to Paris), the handler is also invoked again. Lastly, a second query parameter "other" is added to the URL, this also results that the handler is run again.

By testing this out we learn that the default behavior uses the URL path with query parameters to identify unique requests, and also to read and write to the cache. When the value of a query parameter changes or when a new query parameter is added, the cache isn't hit. If this isn't the desired behavior, the configuration of the output cache can be fine-tuned to your needs.

To cache a request by a (or multiple) unique query parameter(s), use the overload of CacheOutput. The overload gives us access to the policy builder OutputCachePolicyBuilder to configure the caching strategy.

One of the options is to use the OutputCachePolicyBuilder.VaryByQuery method to uniquely identify requests by specific query parameter(s). The method expects none, one, or multiple query parameter names to vary the cache.

Let's see what happens when we configure the policy to identify requests by the "city" query parameter.

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache();

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

var summaries = new[]
{
    "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
};

app.MapGet("/weatherforecast", async () =>
{
    await Task.Delay(1000);
    var forecast = Enumerable.Range(1, 5).Select(index =>
        new WeatherForecast
        (
            DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
            Random.Shared.Next(-20, 55),
            summaries[Random.Shared.Next(summaries.Length)]
        ))
        .ToArray();
    return forecast;
})
.CacheOutput(p => p.VaryByQuery("city"));

app.Run();

internal record WeatherForecast(DateOnly Date, int TemperatureC, string? Summary)
{
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
}

To completely ignore query parameters within the URL, use OutputCachePolicyBuilder.VaryByQuery but leave the query parameters empty.

 content_paste
app.MapGet("/weatherforecast", async () =>
{
    // handler logic here
})
.CacheOutput(p => p.VaryByQuery());

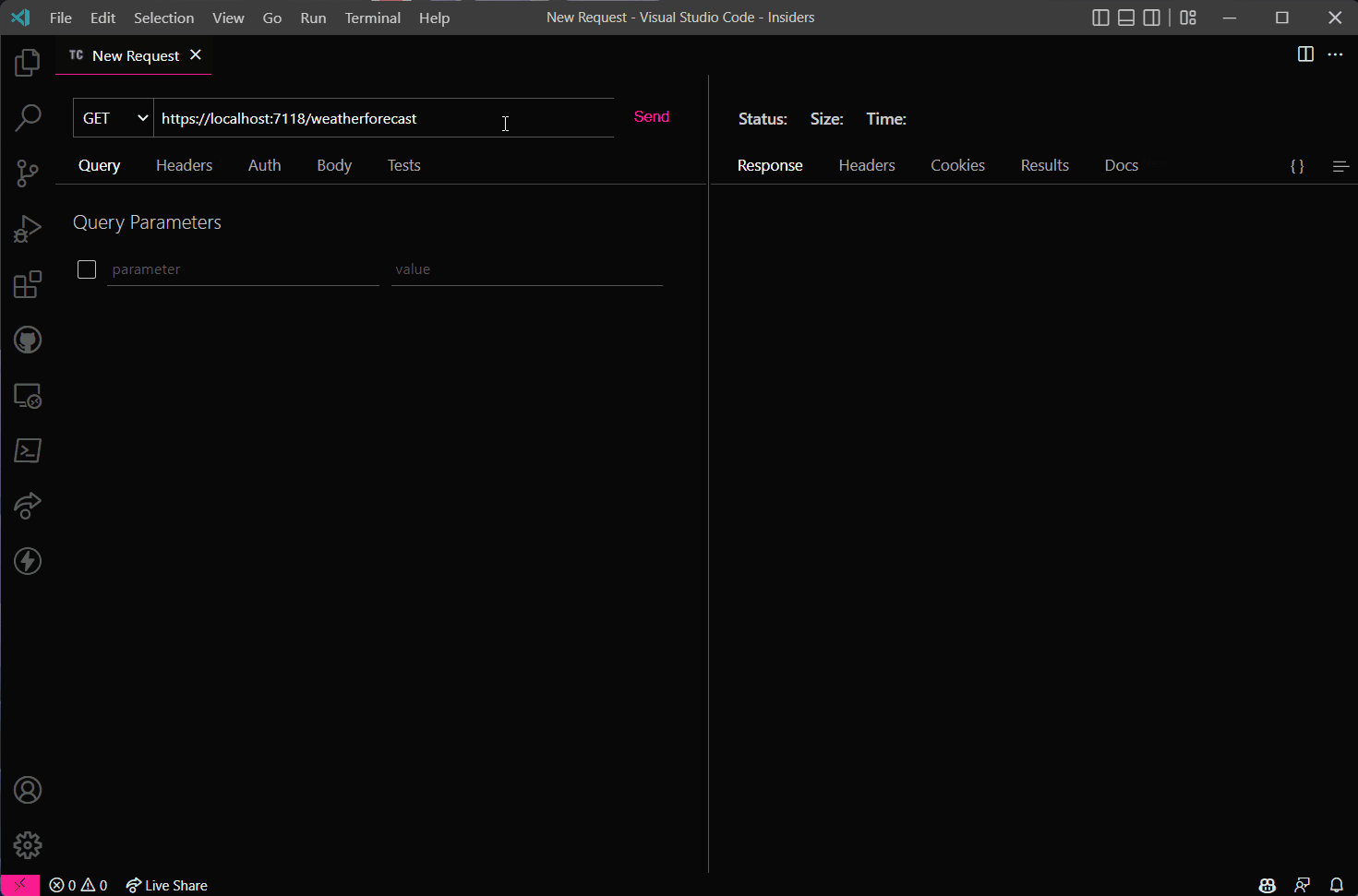

This gives us the following result.

Cache by Request Header link

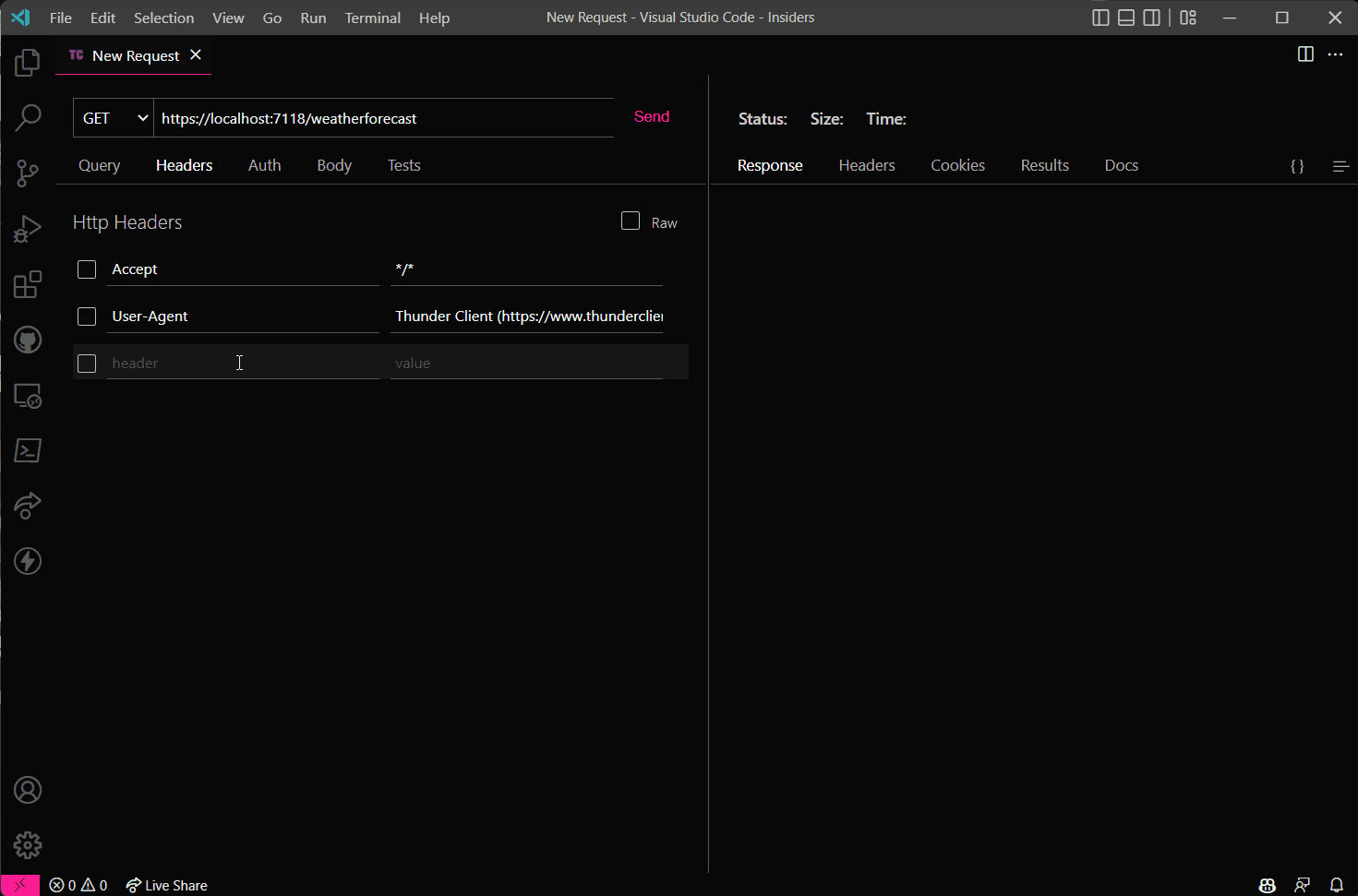

Instead of using query parameters, you can also build the cache with request headers with OutputCachePolicyBuilder.VaryByHeader. In the following example, the "X-City" request header differentiates requests by city, each city has an individual cache.

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache();

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

var summaries = new[]
{
    "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
};

app.MapGet("/weatherforecast", async () =>
{
    await Task.Delay(1000);
    var forecast = Enumerable.Range(1, 5).Select(index =>
        new WeatherForecast
        (
            DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
            Random.Shared.Next(-20, 55),
            summaries[Random.Shared.Next(summaries.Length)]
        ))
        .ToArray();
    return forecast;
})
.CacheOutput(p => p.VaryByHeader("X-City"));

app.Run();

internal record WeatherForecast(DateOnly Date, int TemperatureC, string? Summary)
{
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
}

Cache by Value link

You can make use of OutputCachePolicyBuilder.VaryByValue to even have more fine-grained control over the cache policy. OutputCachePolicyBuilder.VaryByValue is a Func that takes the HttpContext as argument and expects a string or KeyValuePair<string, string> as result.

I haven't had the need to implement a cache using this, if you have a good use case feel free to contact me.

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache();

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

var summaries = new[]
{
    "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
};

app.MapGet("/weatherforecast", async () =>
{
    await Task.Delay(1000);
    var forecast = Enumerable.Range(1, 5).Select(index =>
        new WeatherForecast
        (
            DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
            Random.Shared.Next(-20, 55),
            summaries[Random.Shared.Next(summaries.Length)]
        ))
        .ToArray();
    return forecast;
})
.CacheOutput(x => x.VaryByValue(httpCtx => {
    /*
     * Implementation here
     */
}));

app.Run();

internal record WeatherForecast(DateOnly Date, int TemperatureC, string? Summary)
{
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
}

Cache Expiration link

The default implementation expires the cache after one minute (absolute duration).

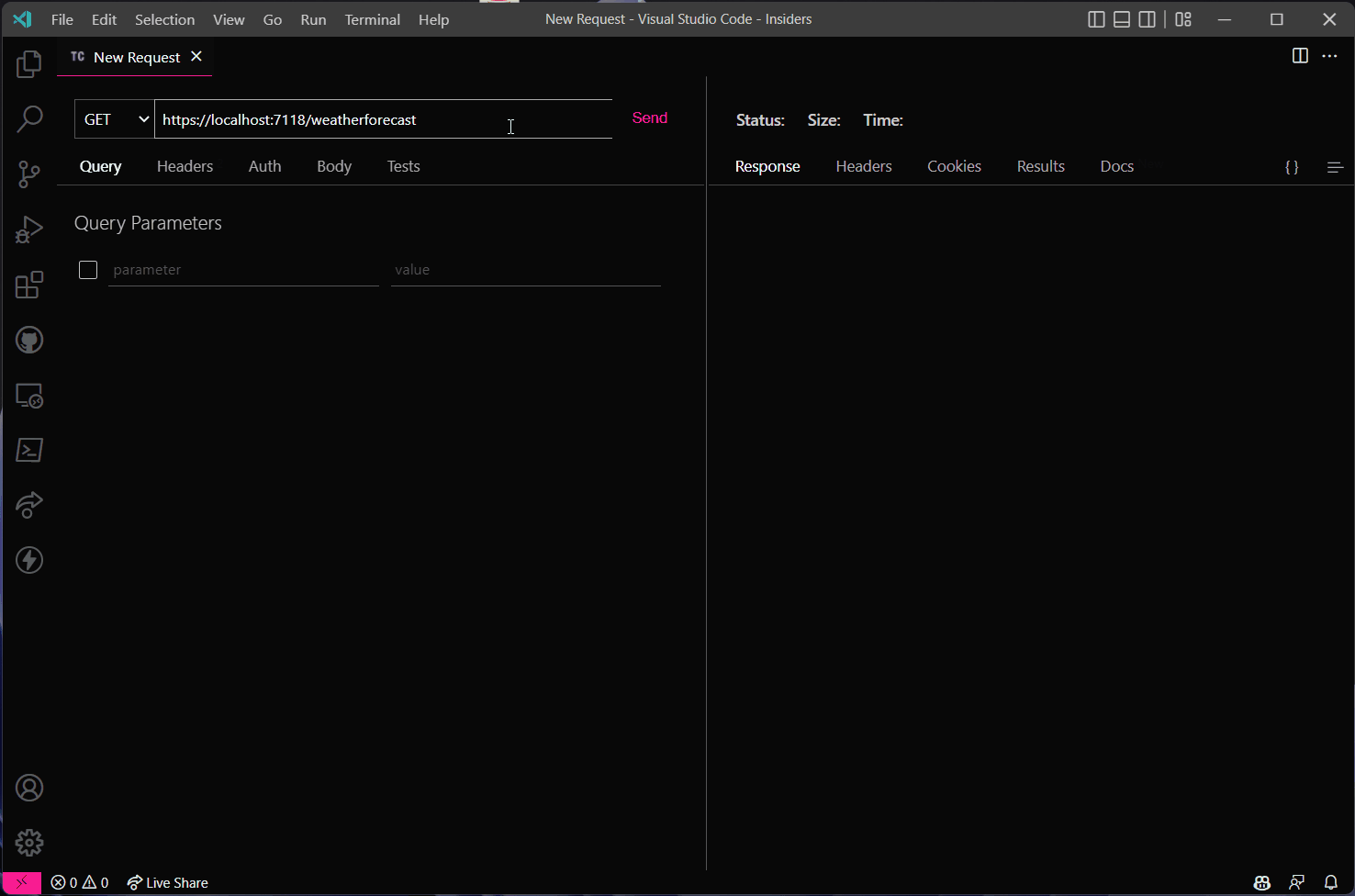

To control how long a cache entry is valid, set expiration for routes by using the OutputCachePolicyBuilder.Expire method and pass it a TimeSpan.

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache();

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

var summaries = new[]
{
    "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
};

app.MapGet("/weatherforecast", async () =>
{
    await Task.Delay(1000);
    var forecast = Enumerable.Range(1, 5).Select(index =>
        new WeatherForecast
        (
            DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
            Random.Shared.Next(-20, 55),
            summaries[Random.Shared.Next(summaries.Length)]
        ))
        .ToArray();
    return forecast;
})
.CacheOutput(p => p.Expire(TimeSpan.FromSeconds(2)));

app.Run();

internal record WeatherForecast(DateOnly Date, int TemperatureC, string? Summary)
{
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
}

Modify the default expiration time link

To change the default expiration time, update the DefaultExpirationTimeSpan while registering the Output Cache. For example, to use the cache for one hour:

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache(options =>
{
    options.DefaultExpirationTimeSpan = TimeSpan.FromHours(1);
});

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

Cache Purge link

In some cases, you might want to purge (clear) the cache when a certain event occurs. For example, when you know that the data has been updated, and you want to provide your users the updated data. When the cache is purged, the cache is revalidated when the next request is received.

To purge the cache, first, add a tag (which is a string) to the cache output with the OutputCachePolicyBuilder.Tag method.

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache();

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

var summaries = new[]
{
    "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
};

app.MapGet("/weatherforecast", async () =>
{
    await Task.Delay(1000);
    var forecast = Enumerable.Range(1, 5).Select(index =>
        new WeatherForecast
        (
            DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
            Random.Shared.Next(-20, 55),
            summaries[Random.Shared.Next(summaries.Length)]
        ))
        .ToArray();
    return forecast;
})
.CacheOutput(p => p.Tag("wf"));

app.Run();

internal record WeatherForecast(DateOnly Date, int TemperatureC, string? Summary)
{
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
}

Then, inject the IOutputCacheStore store and call the EvictByTagAsync method. The method accepts the tag name that needs to be purged.

 SomeClass.cs content_paste
public class SomeClass
{
    private readonly IOutputCacheStore _cache;

    public SomeClass(IOutputCacheStore cache)
    {
        _cache = cache;
    }

    public  async Task SomeMethod(CancellationToken cancellationToken)
    {
        // Some logic here....
        await _cache.EvictByTagAsync("wf", cancellationToken);
    }
}

RouteGroups link

Now that we've seen how the basics of the CacheOutput middleware works, let's see how to use it in more complex scenarios.

When you have multiple endpoints that require a cache with similar policies, you don't have to add the CacheOutput middleware to each endpoint. This would be hard to maintain, and easy to make mistakes. To make it better manageable, create a route group and add the middleware to the group.

In the example below we first create a route group called wf, and apply the output cache middleware to it. Then, two endpoints are added to the group.

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache();

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

var summaries = new[]
{
    "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
};

var wf = app.MapGroup("weatherforecast").CacheOutput();

wf.MapGet("", async () =>
{
    await Task.Delay(1000);
    var forecast = Enumerable.Range(1, 5).Select(index =>
        new WeatherForecast
        (
            DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
            Random.Shared.Next(-20, 55),
            summaries[Random.Shared.Next(summaries.Length)]
        ))
        .ToArray();
    return forecast;
});

wf.MapGet("other", async () =>
{
    await Task.Delay(1000);
    var forecast = Enumerable.Range(1, 5).Select(index =>
        new WeatherForecast
        (
            DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
            Random.Shared.Next(-20, 55),
            summaries[Random.Shared.Next(summaries.Length)]
        ))
        .ToArray();
    return forecast;
});

app.Run();

internal record WeatherForecast(DateOnly Date, int TemperatureC, string? Summary)
{
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
}

Disable caching with NoCache link

When working with groups (or policies later), the configuration that is applied on individual endpoints takes precedence over the configuration that is applied to the group.

For example, if you don't want to cache an endpoint, you can use the OutputCachePolicyBuilder.NoCache method. In the example below, the /nocache route is added to the wf group that was created in the previous step. The NoCache is applied to the /nocache route, because of this, this route won't use the cache policies that were applied on the wf group.

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache();

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

var summaries = new[]
{
    "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
};

var wf = app.MapGroup("weatherforecast").CacheOutput();

wf.MapGet("", async () =>
{
    await Task.Delay(1000);
    var forecast = Enumerable.Range(1, 5).Select(index =>
            new WeatherForecast
            (
                DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
                Random.Shared.Next(-20, 55),
                summaries[Random.Shared.Next(summaries.Length)]
            ))
        .ToArray();
    return forecast;
});

wf.MapGet("nocache", async () =>
{
    await Task.Delay(1000);
    var forecast = Enumerable.Range(1, 5).Select(index =>
            new WeatherForecast
            (
                DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
                Random.Shared.Next(-20, 55),
                summaries[Random.Shared.Next(summaries.Length)]
            ))
        .ToArray();
    return forecast;
})
.CacheOutput(p => p.NoCache());

app.Run();

internal record WeatherForecast(DateOnly Date, int TemperatureC, string? Summary)
{
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
}

Policies link

When you find yourself configuring many endpoints and/or endpoint groups with the same configuration, creating your own cache policy is probably the best way to go. While creating custom policies you can choose to create a named policy or to add a default policy to the whole application.

You can include your own custom policies within the callback of IServiceCollection.AddOutputCache.

Named policies link

In the next example, the named cache policy InvariantQueries is created to ignore all query parameters. This is done with the AddPolicy, which expects a policy name (a string), and an Action<OutputCachePolicyBuilder> to configure the cache policy.

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache(options =>
{
    options.AddPolicy("InvariantQueries", builder =>
    {
        builder.VaryByQuery();
    });
});

To make use of the InvariantQueries policy, use another overload on the CacheOutput middleware and pass it the name of the policy. In our example, InvariantQueries.

 Program.cs content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache(options =>
{
    options.AddPolicy("InvariantQueries", builder =>
    {
        builder.VaryByQuery();
    });
});

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

var summaries = new[]
{
    "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
};

app.MapGet("/weatherforecast", async () =>
{
    await Task.Delay(1000);
    var forecast = Enumerable.Range(1, 5).Select(index =>
        new WeatherForecast
        (
            DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
            Random.Shared.Next(-20, 55),
            summaries[Random.Shared.Next(summaries.Length)]
        ))
        .ToArray();
    return forecast;
})
.CacheOutput("InvariantQueries");

app.Run();

internal record WeatherForecast(DateOnly Date, int TemperatureC, string? Summary)
{
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
}

Default (or "Base") policies link

To create a default policy that is used for all requests, use AddBasePolicy. The difference with a named policy is that AddBasePolicy doesn't expect a policy name as an argument. Just like a named policy, AddBasePolicy uses the Action<OutputCachePolicyBuilder> to configure the cache policy.

In the implementation of the example below all requests are cached if they contain the X-Cached header. Notice that it isn't required to add CacheOutput to a route to enable this base policy.

 Program content_paste
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOutputCache(options =>
{
    options.AddBasePolicy(builder =>
    {
        builder.With(p => p.HttpContext.Request.Headers.ContainsKey("X-Cached"));
    });
});

var app = builder.Build();
app.UseHttpsRedirection();
app.UseOutputCache();

var summaries = new[]
{
    "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
};

app.MapGet("/weatherforecast", () =>
{
    var forecast = Enumerable.Range(1, 5).Select(index =>
        new WeatherForecast
        (
            DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
            Random.Shared.Next(-20, 55),
            summaries[Random.Shared.Next(summaries.Length)]
        ))
        .ToArray();
    return forecast;
});

app.Run();

internal record WeatherForecast(DateOnly Date, int TemperatureC, string? Summary)
{
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
}

Cache locking link

When a cache entry doesn't exist and needs to be created, but the server receives multiple requests simultaneously for that entry, then the handler is only executed once. The handler of the first request populates the cache, and the other requests wait until the first request is finished. This prevents the server from being overloaded with requests.

The DefaultPolicy implementation link

To know how the default implementation behaves, you can take a look at the source code of DefaultPolicy.

One detail that pops out, and which I didn't expect at first but makes sense, is the check if output caching should be used. Here, we can see that authorized requests are ignored from being cached.

 DefaultPolicy.cs content_paste
private static bool AttemptOutputCaching(OutputCacheContext context)
{
    // Check if the current request fulfills the requirements to be cached

    var request = context.HttpContext.Request;

    // Verify the method
    if (!HttpMethods.IsGet(request.Method) && !HttpMethods.IsHead(request.Method))
    {
        context.Logger.RequestMethodNotCacheable(request.Method);
        return false;
    }

    // Verify existence of authorization headers
    if (!StringValues.IsNullOrEmpty(request.Headers.Authorization) || request.HttpContext.User?.Identity?.IsAuthenticated == true)
    {
        context.Logger.RequestWithAuthorizationNotCacheable();
        return false;
    }

    return true;
}

If this doesn't work for your application, you can create your own policy by implementing the IOutputCachePolicy interface. The created policy then has to be provided to AddBasePolicy.

Using OutputCache with Controllers link

So far we've only seen how to use the OutputCache middleware with minimal APIs.

But, because it's just a middleware it can also be used with the traditional controllers. As you can see in the example below, you simply have to add the OutputCache attribute on top of the controller's method. Or, when you want to enable output caching for the whole controller, you can add the OutputCache attribute to the controller class.

 WeatherForecastController.cs content_paste
using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.OutputCaching;

namespace OutputCaching.Controllers;

[ApiController]
[Route("[controller]")]
[OutputCache] // enable caching for the whole controller
public class WeatherForecastController : ControllerBase
{
    private static readonly string[] Summaries = new[]
    {
        "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
    };

    [HttpGet]
    [OutputCache] // enable caching for a specifc endpoint
    public async Task<IEnumerable<WeatherForecast>> Get()
    {
        await Task.Delay(1000);
        var forecast = Enumerable.Range(1, 5).Select(index =>
            new WeatherForecast
            (
                DateOnly.FromDateTime(DateTime.Now.AddDays(index)),
                Random.Shared.Next(-20, 55),
                Summaries[Random.Shared.Next(Summaries.Length)]
            ))
            .ToArray();
        return forecast;
    }
}

Conclusion link

In this post, we've covered most of the features of the new output caching middleware. Using the middleware improves the performance of your application. Looking at the API, we've seen that it almost requires no code to use the caching middleware, while it's flexible to be configured to your own needs.

For more context, see the GitHub issue that discusses the new output caching middleware. For more examples, you can also take a look at the OutputCachingSample.

There's also a geat talk about the introduction and capabilities of the new Output Caching in ASP.NET Core 7.

Outgoing links

• Prevent a .NET API from adding cache headers to unsuccessful requests

Feel free to update this blog post on GitHub, thanks in advance!

Support me

I appreciate it if you would support me if have you enjoyed this post and found it useful, thank you in advance.

Share this post
